SH-Solvent Caps

Benefits

961-10081-04
  • Closed system to prevent hazardous vapours from entering the laboratory
  • Hermetically seal all laboratory bottles with GL45 thread
  • Ensure safe inflow and outflow of HPLC solvents via capillaries with OD-ø 3.2 mm
  • Chemical resistance allows sterilisation and autoclaving up to 140 °C for soap-free operation
  • Prevent tangling of tubes by allowing the inner body of the cap to rotate independently
  • All Solvent Caps are supplied with an air valve and capillary fitting as the optimum solution for solvent removal



Features



SH-Solvent Caps



Ordering Information

  1 Line 2 Lines 3 Lines 4 Lines Air valve with flag Blind stopper (10 pcs.)
P/N 961-10081-01 961-10081-02 961-10081-03 961-10081-04 961-10089-02 9610089-10 961-10088-10

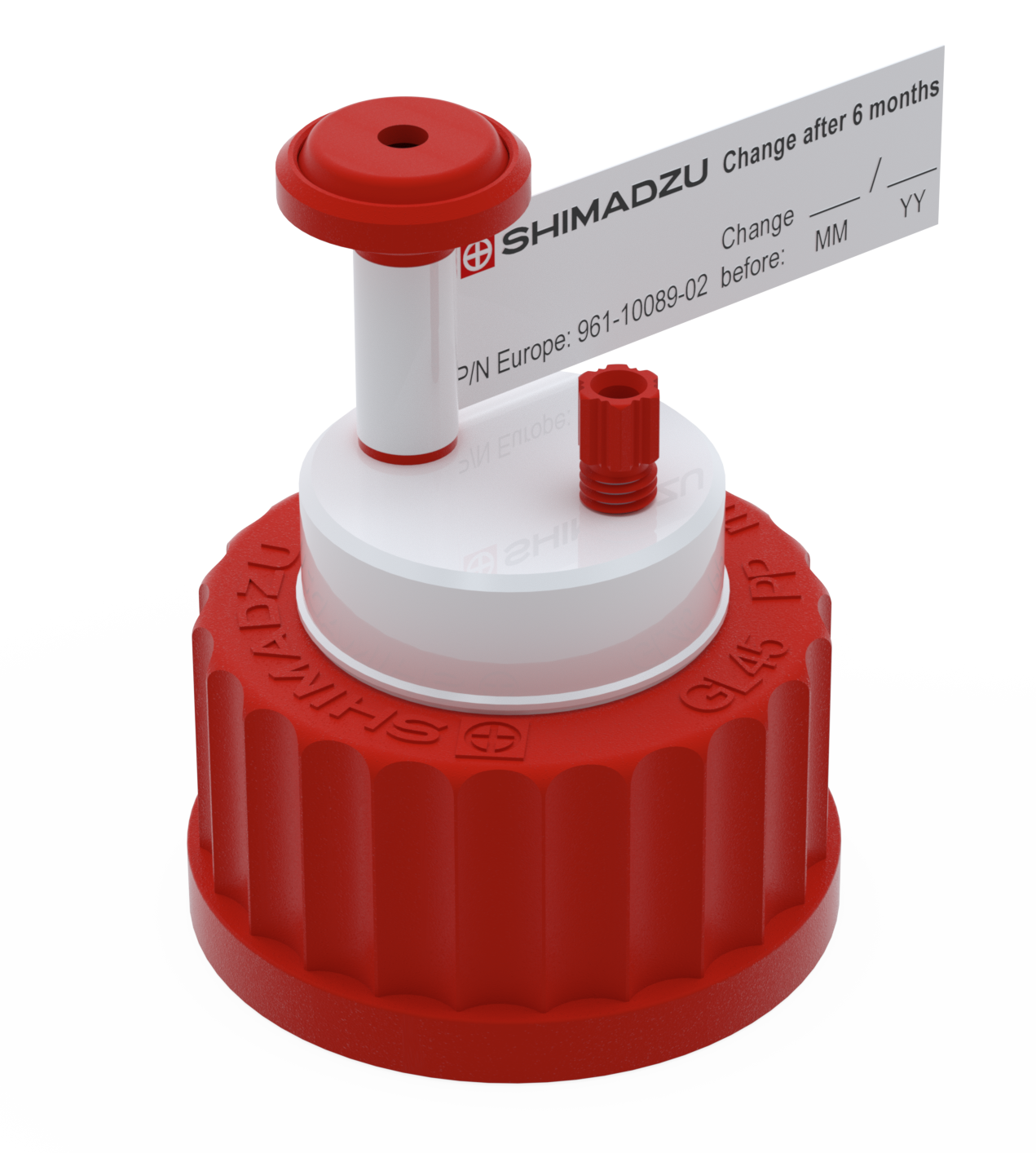

961-10081-01

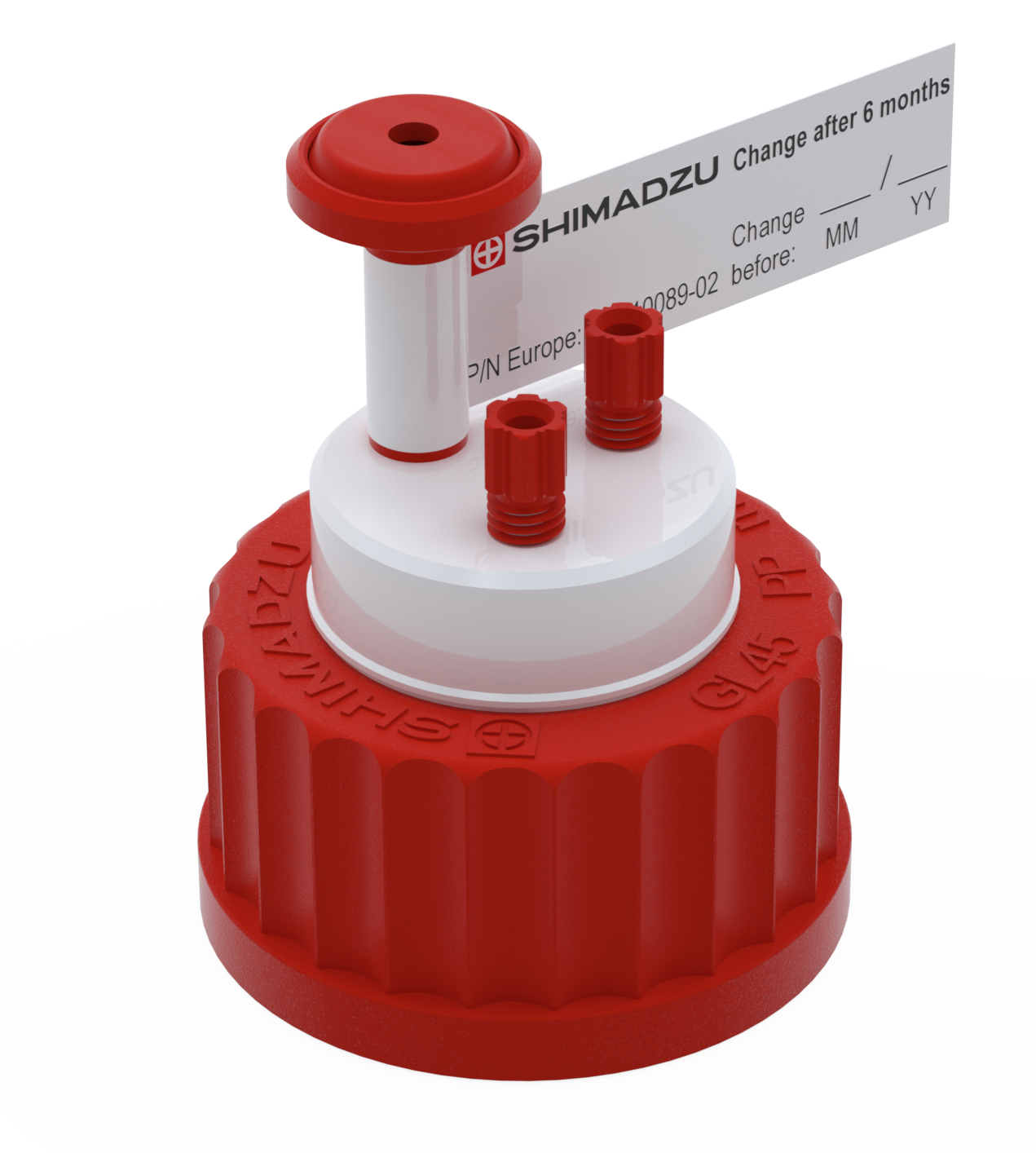

961-10081-02

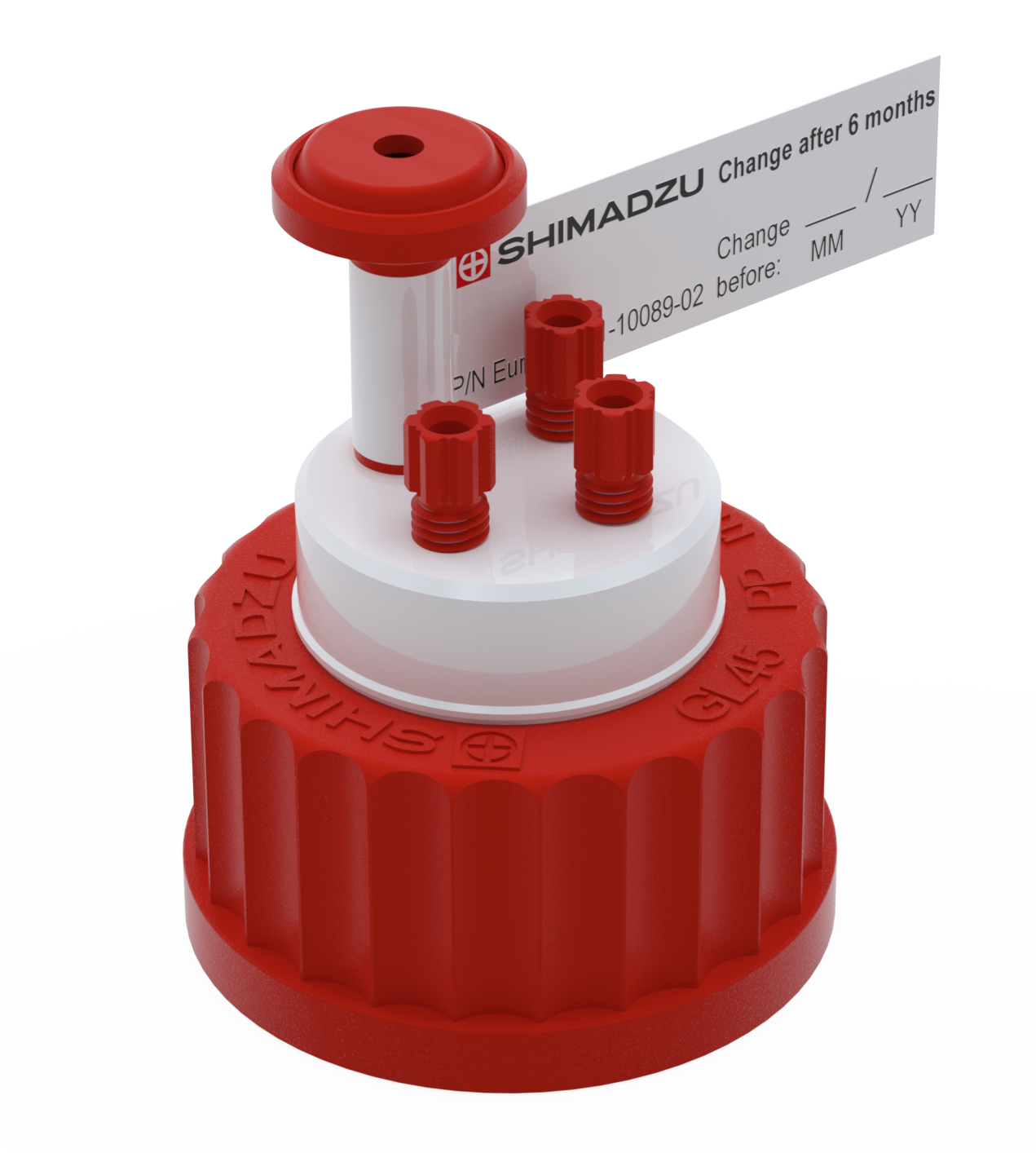

961-10081-03
961-10081-04

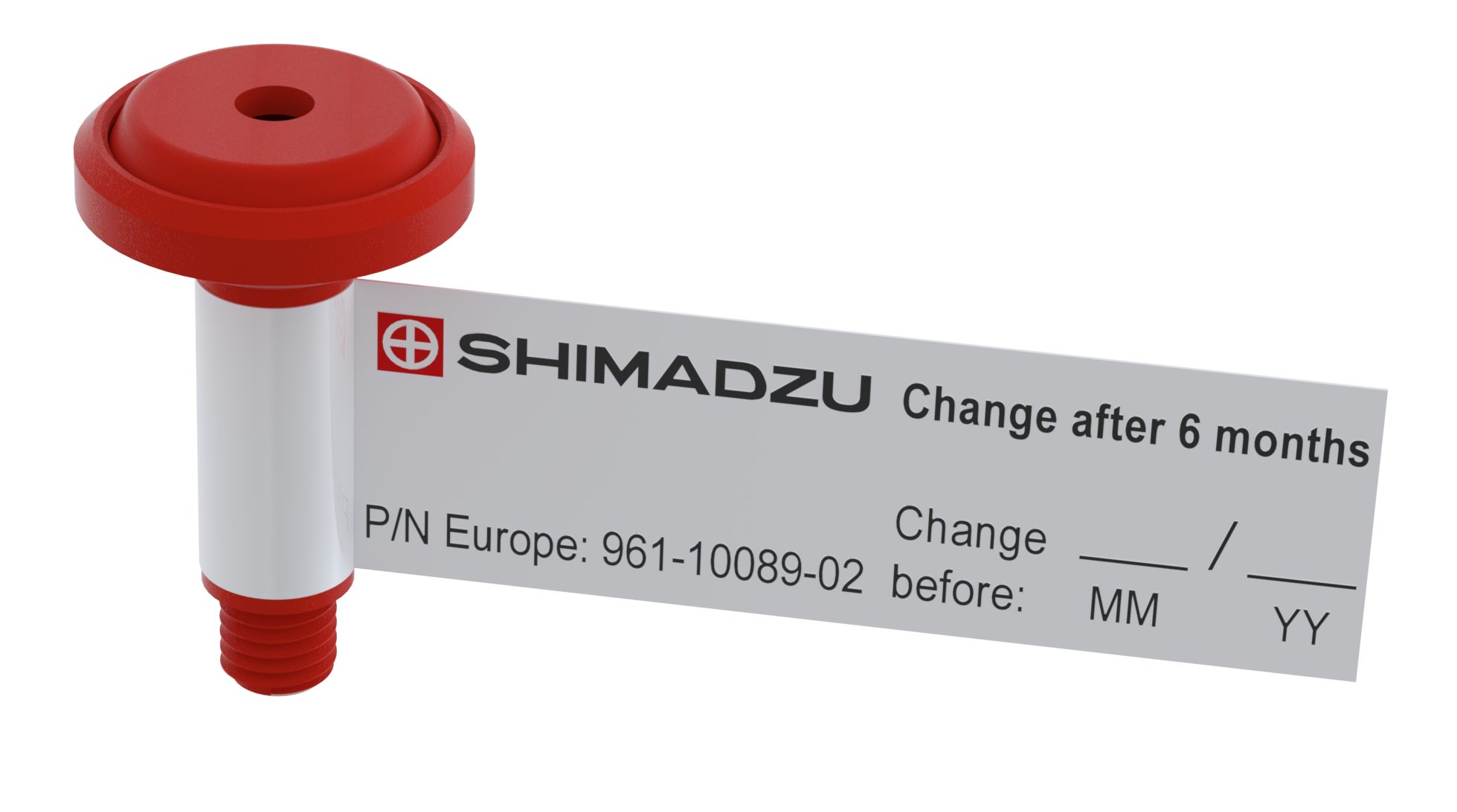

961-10089-02

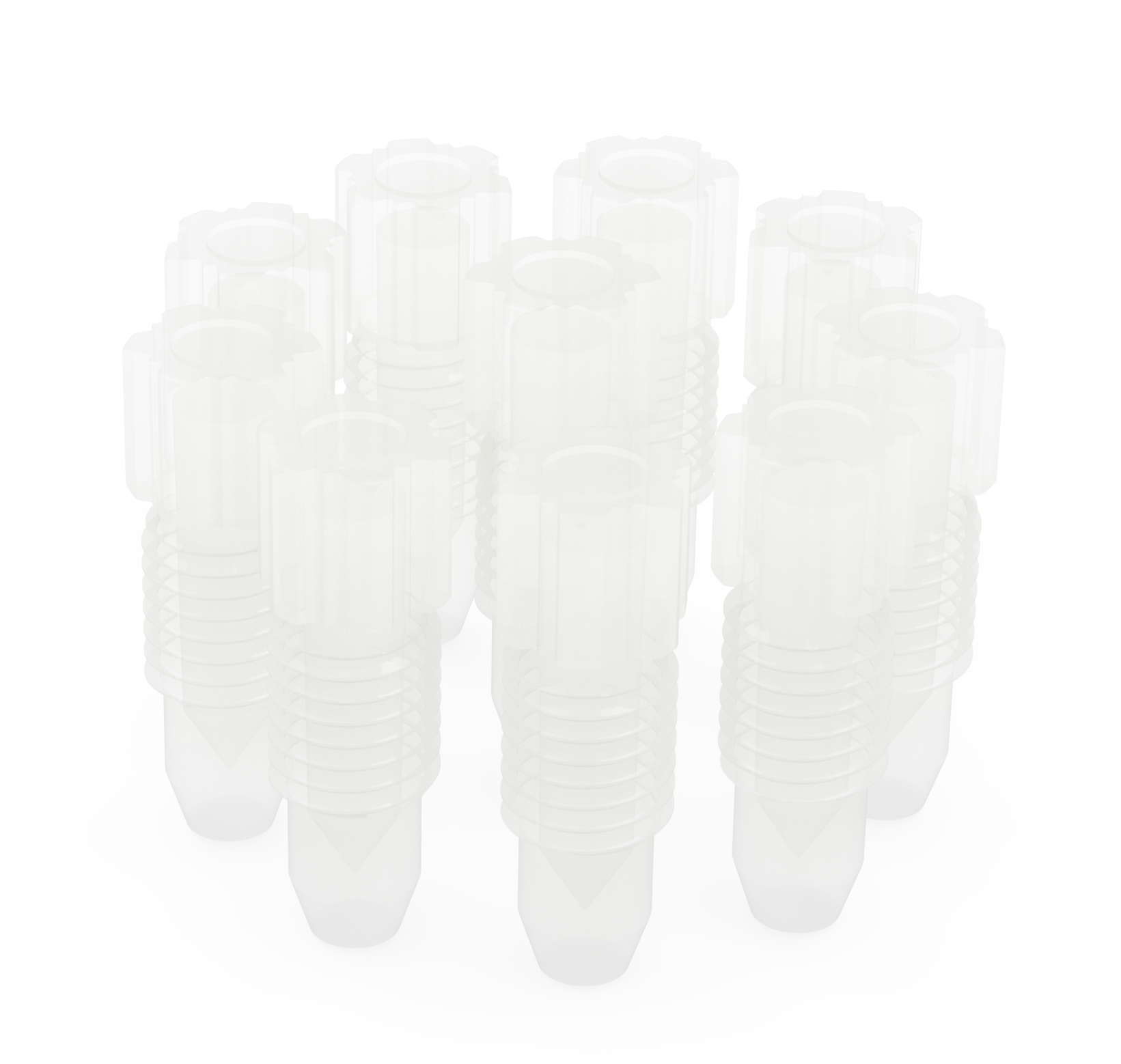

961-10088-10
Content 1 Cap
1 Air valve + Flag
1 Fitting
1 Cap
1 Air valve + Flag
2 Fittings
1 Blind stopper
1 Cap
1 Air valve + Flag
3 Fittings
2 Blind stopper
1 Cap
1 Air valve + Flag
4 Fittings
3 Blind stopper
2 pcs. 10 pcs. 10 pcs.





Solvent Caps Packages

Useable for LC LC-MS Method Scouting
P/N 961-10080-01 961-10080-02 961-10080-03
Content P/N 3x 961-10081-01 4x 961-10081-01 8x 961-10081-03
Title ./. 1x 961-10081-04 1x 961-10081-04
Replacement Air Valves 1x 961-10089-02 1x 961-10089-02 1x 961-10089-02
Waste Set 1x 980-10223 1x 980-10223 1x 980-10223

Solvent Caps Accessory

Waste Set

P/N Content
980-10223
  • 5 L space saving canister
  • Waste Cap; S50 thread
  • Fittings
  • Size S exhaust filter; up to 3 months lifetime; with change indicator
980-10223



Exhaust Filter for Waste Can

P/N Content
980-10115 Size M; up to 6 months lifetime; with change indicator
980-10115
