Forming Equipment for Pellet Measurement
Share
Share
Add Bookmark
Last update: 5 June 2024
Evacuable Die for KBr Pellets (pellet diameter: Φ13)
Name | P/N | Appearance | Qty | Remarks |
---|---|---|---|---|
Compression Spring |
202-35252
|
1 | ||
Plunger Guide Fitting |
202-35251
|
1 | ||
Exhaust Port |
202-35254
|
1 | ||
Base |
202-35247
|
1 | ||
Φ13 mm, Sample Table |
206-73889
|
1 | ||
Φ13 mm, Briquetting Frame |
202-35250
|
1 | ||
Punching Rod |
202-35256
|
1 | ||
Punching Base |
202-35255
|
1 | ||
Sieve |
202-35261
|
1 | Mesh size: #200 | |
Blank Plug |
202-35257
|
1 | ||
O-Ring, 1AP28 |
036-10229
|
1 | For the base | |
O-Ring, 4CP24 |
036-11025-84
|
5 | For the plunger guide fitting | |
Plunger |
204-21049
|
1 |
MHP-1 Mini Hand Press (for KBr pellet method)
Name | P/N | Appearance | Qty | Applicable models |
---|---|---|---|---|
Upper/Lower Cylinder Set + 10 pcs. of Briquetting Frames, for Φ4 mm |
206-73717-91
|
1 set |
KBr pellet method |
|
Briquetting Frame, Φ4 mm, 20 pcs. |
206-73718-91
|
1 set |
KBr pellet method |
|
Upper/Lower Cylinder Set + 10 pcs. of Briquetting Frames, for Φ3 mm |
200-66748
|
1 set |
KBr pellet method |
|
Briquetting Frame, Φ3 mm, 20 pcs. |
200-66749-01
|
1 set |
KBr pellet method |
|
Pellet Removing Tool |
200-66747-03
|
1 |
KBr pellet method |
|
Base for Removing Pellets |
200-66747-04
|
1 |
KBr pellet method |
|
Pellet Holder |
202-35258
|
1 |
External View of Parts of Pellet Forming Equipment for Pellet Measurement

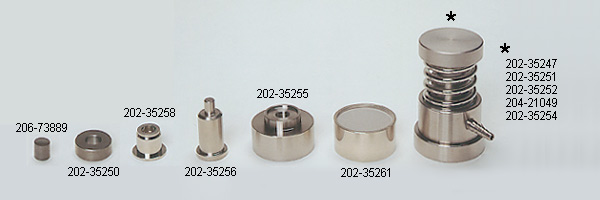

Parts for Evacuable Die for KBr Pellets
-
Parts for Micro Pellet Die
-

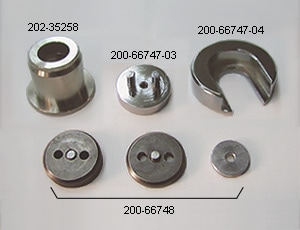

Parts for Mini Hand Press
